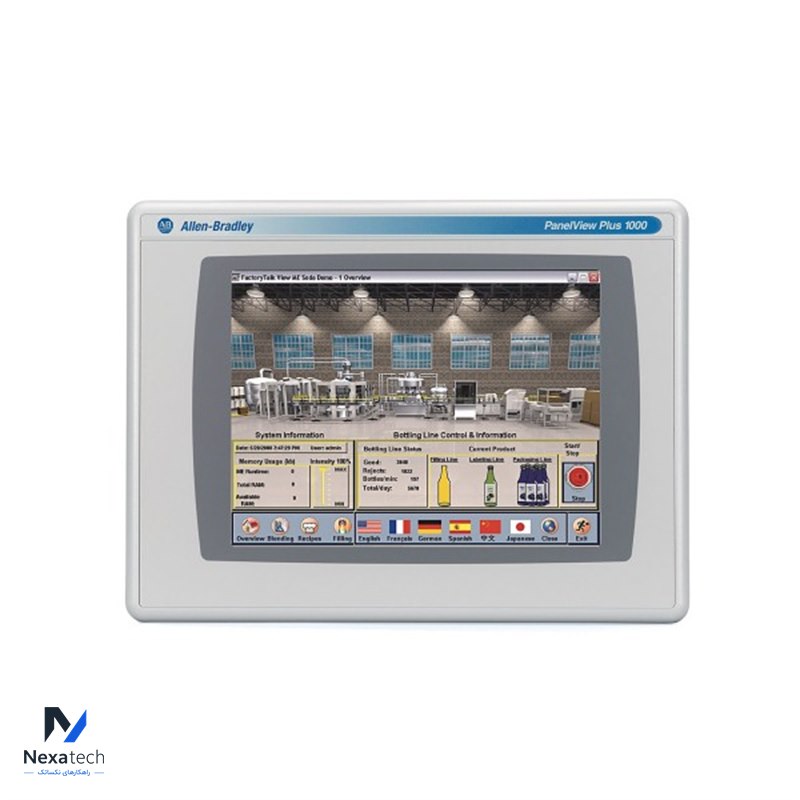

2711PC-T10C4D8 Panelview Plus 6 1000 Operator Terminal
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 2711PC-T10C4D8 | ||
| Alternate Part Number | 2711PC-T10C4D8 | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 15.2 cm | Weight | 0.3kg |
| Description | Panelview Plus 6 1000 Operator Terminal | Warranty: | 12 Months |
| | | | |
The 2711PC-T10C4D8 is a Panelview Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, USB communication ports. This operator terminal has a touchscreen input interface.
The 2711PC-T10C4D8 is a member of the PanelView Plus 6 1000 series, which are operator terminals designed for monitoring and controlling applications. This specific model features a 10.4-inch color touchscreen display and is designed to provide an intuitive interface for operators to interact with industrial machinery and processes.
Key Features:
10.4-Inch Color Touchscreen Display:
Provides a clear and vibrant interface with a resolution of 640 x 480 pixels (VGA), allowing operators to easily monitor and control processes.
Touchscreen Interface:
Equipped with an analog resistive touchscreen, which supports touch inputs for navigating through applications and controlling machines.
Integrated Communication:
Includes built-in communication options such as Ethernet, USB, and RS-232 ports, making it easy to connect to various networks and peripheral devices.
| Product Family: | PanelView Plus 6 Compact Terminals |
| Product Type: | PanelView Plus 6 600 Compact Terminals |
| Operator Input: | Touch |
| Display Type: | Color active-matrix TFT |
| Lifecycle status: | End of life |
| Backlight: | CCFL, 50,000 hours min at 25 掳 C (77 掳F), field replaceable |
| Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution: | 640 x 480, 18-bit color graphics |
| Touch: | Analog Resistive |
| Internal memory: | 512MB Flash Memory / 512 MB Random Access Memory |
| Integrated ports: | Ethernet, RS-232, 2 USB host |
| Input Voltage range: | 18-32VDC |
| Part Number/Catalog No. | 2711PC-T10C4D8 |
| Product Line | PanelView Plus 6 Compact |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 24 Volts DC |
