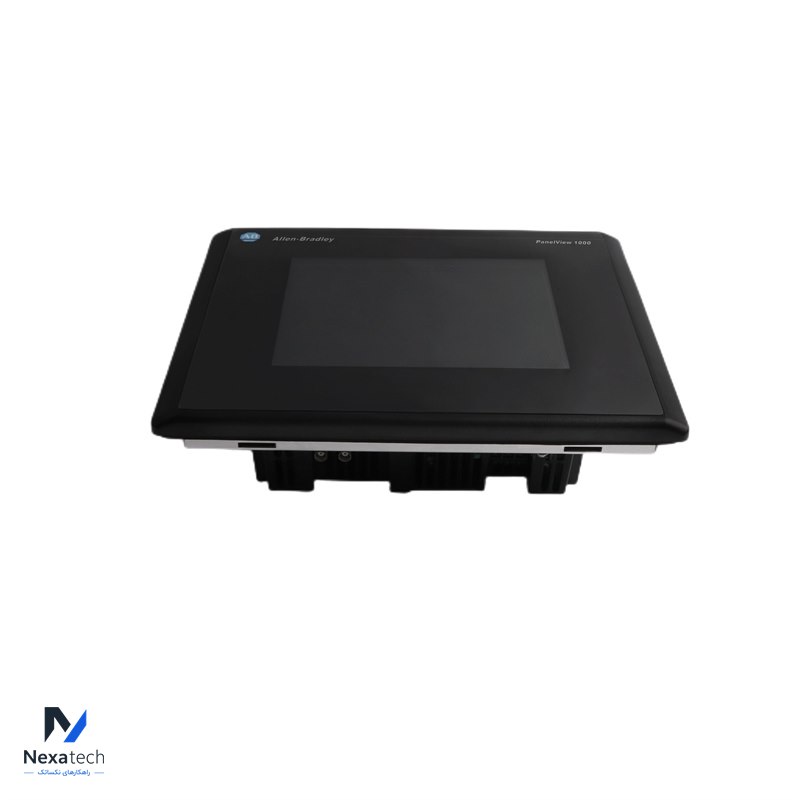

2711-T10C15 PanelView 1000 Standard Operator Terminal
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 2711-T10C15 | ||
| Alternate Part Number | 2711-T10C15 | ||
| Condition: | 100% Original | ||
| Dimensions | 2.4x1.1x2.8cm | Weight | 0.11 kg |
| Description | Output module Operator Terminal | Warranty: | 12 Months |
| | | | |
The 2711-T10C15 PanelView 1000 Standard Operator Terminal is a part PanelView series Communication:
Ports: 1 x RS-232, 1 x RS-422/485 (for connecting to other devices or PLCs)
Protocols: Compatible with Allen-Bradley PLCs and other devices via supported communication protocols
Power Supply:
Voltage: 85-264V AC, 47-63 Hz
Current: 1.0 A maximum
Environment:
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
| Input Type | Touch |
| Part Number/Catalog No. | 2711-T10C15 |
| Product Family: | PanelView Standard Terminals |
| Product Type: | Operator Terminals |
| Display Type: | Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution: | 640 x 480 pixels |
| Backlight: | 100,000 hr LED backlight life |
| Touchscreen: | 384 (24 columns x 16 rows) |
| Touch Cell size: | 26 x 30 pixels |
| Application memory: | 1008K bytes (application screens) |
| Communication ports: | ControlNet; RS232 (printer) |
| Input Voltage range: | 85-264VAC |
| Operating Temperature: | 0…55 ° C (32…131 ° F) |
| Power Consumption: | 39 W (132 BTU/HR) |
| Product Line | Panelview 1000 |
| Display Size | 10.1 inches |
| Display Color | Multi-Color |
| Communication | Printer (RS-232) Port and ControlNet |
