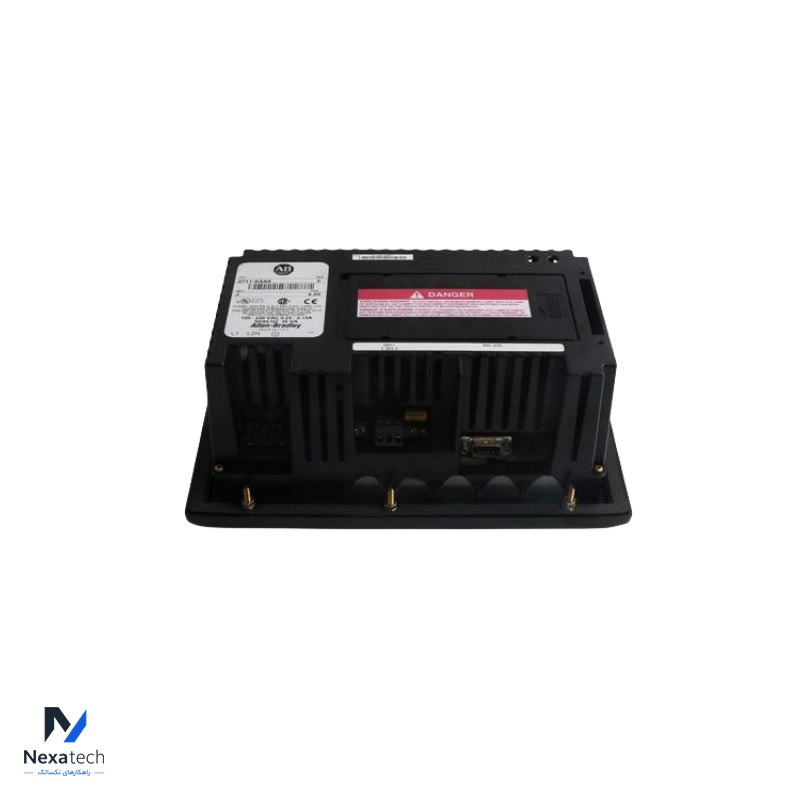

2711-B5A1 PanelView Standard Operator Terminal
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 2711-B5A1 | ||
| Alternate Part Number | 2711-B5A1 | ||
| Condition: | 100% Original | ||
| Dimensions | 2.4x1.1x2.8cm | Weight | 0.11 kg |
| Description | PanelView Standard Operator Terminal | Warranty: | 12 Months |
| | | | |
The 2711-B5A1 is an PanelView Standard Operator Terminal. This operator terminal has a 5.5-inch display with embedded Remote I/O communication port and RS232 communication port. It has ten (10) Function keys and a Touchscreen operator interface.
This HMI provides monitoring, control, communication and other functionalities in one place - via the integrated screen and operator input areas. The HMI’s screen features a 5.5-inch display size, having a resolution of 128 x 64 pixels. With this small screen area, this device is ideally used for micro-automation and small processes that requires minimum graphical, equipment and static displays. It is also built with embedded communication terminals such as an RS232 port for printer communication and a Remote I/O (RIO) communication interface that caters Remote I/O protocol which is a serial-based communication standard. With RIO protocol, up to 32 devices in the Remote I/O network may be connected with a single master device per segment. The RS232 printer port may be specifically used for printing alarm list and messages.
| Backlight | 100,000 hr LED backlight life |
| Input Type | Keypad / Touch |
| Product Family: | PanelView Standard Terminals |
| Product Type: | Operator Terminals |
| Display Type: | Monochrome LCD blue mode display |
| Display Area: | 120 x 60 mm (4.75 x 2.38 in.) |
| Resolution: | 256 x 128 |
| Touchscreen: | Touch cells: 128 Actuation: 1 million presses |
| Keypad function keys: | 10 function keys (F1…F10) |
| Application memory: | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports: | Remote I/O (RIO); RS232 (printer) |
| Input Voltage range: | 85…264V AC, 47…63 Hz |
| Accessories: | function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules; |
| Part Number/Catalog No. | 2711-B5A1 |
| Product Line | Panelview 550 |
| Display Size | 5.5 inches |
| Display Color | Monochrome LCD blue mode |
| Communication | Remote I/O Communication and RS-232 Printer Port |
| Input Power | 120 Volts AC |
| Memory | 170 KB application runtime |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 6 pounds |
| Shipping Dimensions | 14x11x8 inches |
| Series | A,B,C,D,E,F,G,H |
