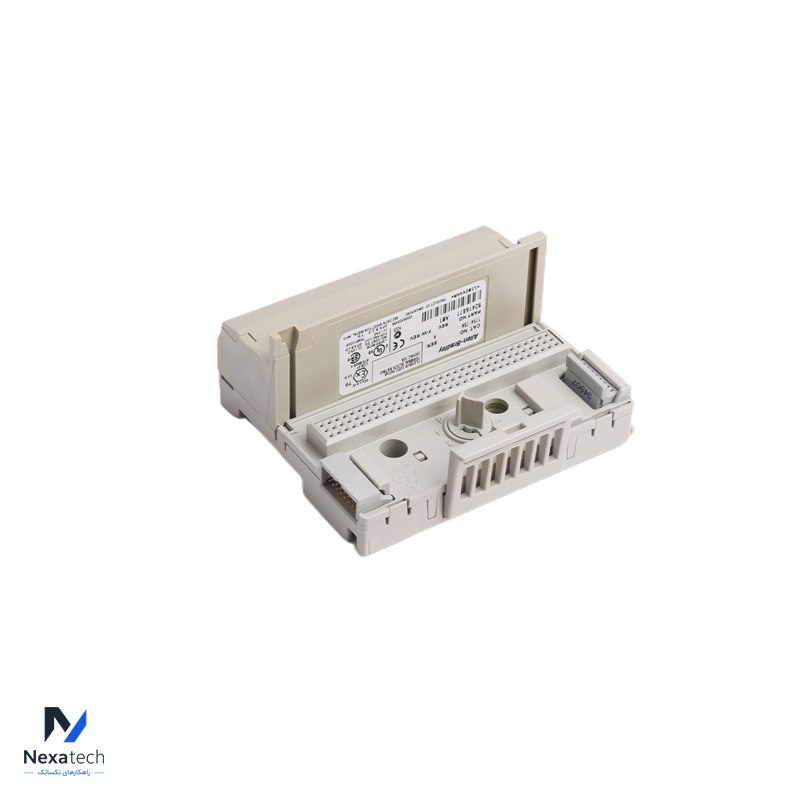

1794-TBN Terminal base

The 1794-TBN terminal base is an terminal base from the Flex I/O 1794 series. It has not been approved for use in Class I, Division 2 environments and applications. The 1794-TBN terminal base has 16 I/O terminal points. It can be used to host different Flex I/O 1794 series output modules on a panel or a DIN Rail. The 1794-TBN terminal base unit operates at -20 to 70 degrees Celsius and it can be stored or transported at -40 to 85 degrees Celsius.

The 1794-TBN Terminal Base Unit 16 I/O terminal base point with 250V AC/DC electrical rating and a maximum current capacity of 10A. The module has 2 common terminals, 2 +voltage terminals, and it uses the NEMA style screw clamp for larger gauge wire with a cover for 10 I/O wirings and for I/O termination.

 The 1794-TBN has 5V DC and 640mA FLEXBUS rating, and it also has a V/COM terminal rating of 250V DC/AC at 50-60 Hz and 10A current. It provides 1.4 Nm (12 lb-in) terminal screw torque and the unit also provided a voltage isolation dependent on the unit module installed in it. It base circuitry utilizes copper wire with a 0.34 x 3.3 mm2 (22-12 AWG) solid or stranded wire size and with a 1.2 mm (3/64 inches thick insulation. The
