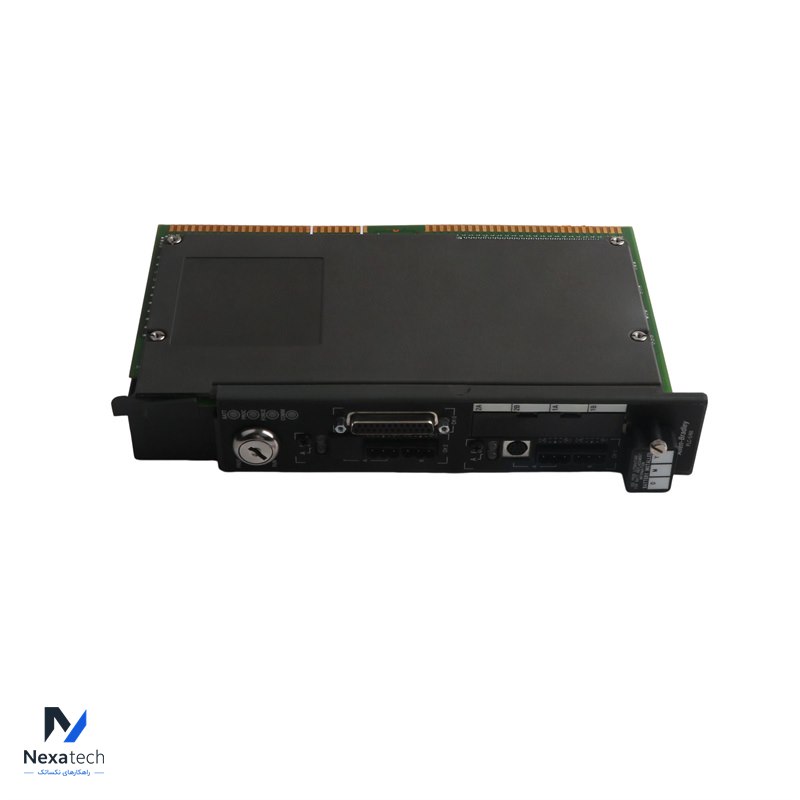

1785-L60B/C PLC5 Processor Module
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1785-L60B/C | ||
| Alternate Part Number | 1785-L60B/C | ||
| Condition: | 100% Original | ||
| Dimensions | 2.4x1.1x2.8cm | Weight | 0.11 kg |
| Description | PLC5 Processor Module | Warranty: | 12 Months |
| | | | |
The 1785-L60B is an enhanced Ethernet PLC5 Programmable Logic Controller (PLC). This controller features a variety of embedded communication ports such as Four (4) DH+/Remote I/O (Adapter or Scanner), One (1) serial port configurable for RS-232 and 423 and RS-422A compatible and Two (2) programming terminals. It supports a maximum user memory of 64K Words and capable of handling any mix of discrete I/O with a total of 3072 point and 3072 input and 3072 output in complimentary mode
The 1785-L60B is capable of controlling I/O modules installed up to 24 I/O racks with maximum number of I/O chassis 93 with 92 remote I/O chassis. The 1785-L60B has an internal battery with catalog number 1770-XYC. This battery will completely discharge 30 days after initial activation of the BATT led. Backup memory may also be added to avoid deletion of important user program and data. Compatible memory backup modules are 1785-ME16 with 16K Words, 1785-ME32 with 32KWords, 1785-ME64 with 64KWords and 1785-ME100Kwords.
| Max I/O Chassis Universal Remote | 92 |
| Max I/O Chassis Total | 93 |
| Module Type | PLC5 Processor |
| Part Number/Catalog No. | 1785-L60B |
| Communication Ports | Four (4) DH+/Remote I/O (Adapter or Scanner), One (1) serial port configurable for RS-232 and 423 and RS-422A compatible and Two (2) programming terminals. |
| Supported Protocols | DF1, ASCII, Data Highway Plus (DH+), Remote I/O (RIO) |
| Controller Memory | up to 64KWords |
| Controller Memory expansion | 1785-ME16 with 16K Words, 1785-ME32 with 32KWords, 1785-ME64 with 64KWords |
| Max. number of I/O racks | 0-27 |
| Max. no. of I/O Racks | 24 |
| Battery | 1770-XYC |
| Processor | PLC-5/60 |
| Max User Memory Words | 64 Kilowords |
| Battery-Backed Static RAM | Yes |
| EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) | Yes |
| Protected Memory | No |
| Max Total I/O | 3072 (any mix) or 3072 in + 3072 out (complementary) |
| Max Analog I/O | 3072 |
| I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
