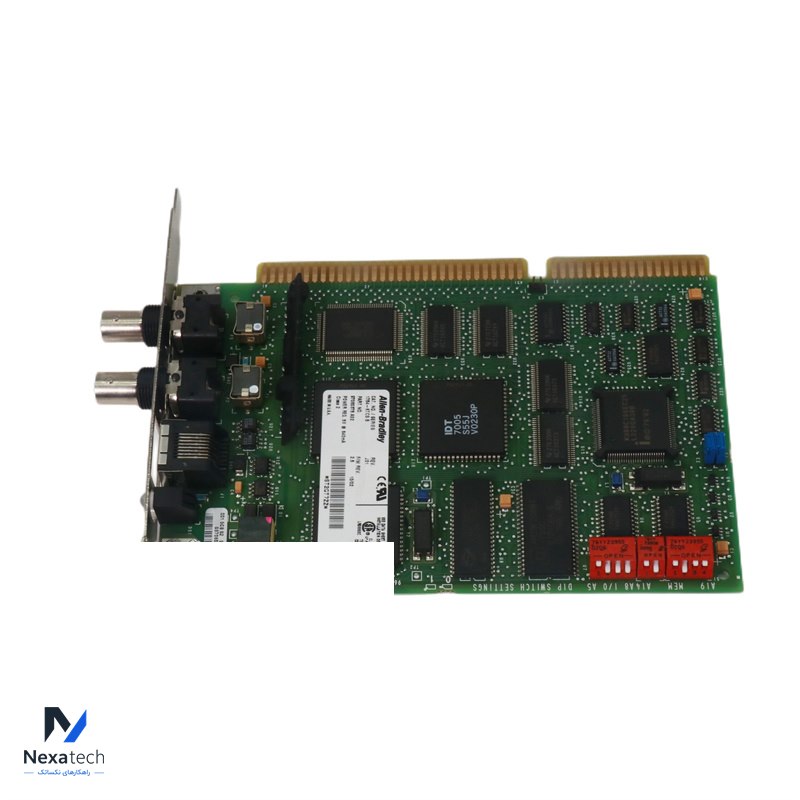

1784-KTCS Interface card
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1784-KTCS | ||
| Alternate Part Number | 1784-KTCS | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 15.2 cm | Weight | 0.3kg |
| Description | Logix5564 Processor Module | Warranty: | 12 Months |
| | | | |
The 1784-KTCX interface card is a PLC 5 series interface card. This interface card comes with 2 channels that are labeled as Channel A and Channel B. The 1784-KTCX interface card also comes with an NAP or network access port that has an RJ 45 connector. This interface card allows a desktop computer to be connected to The 1784-KTCX interface card has an operating temperatu
| Part Number/Catalog No. | 1784-KTCX |
| Part Number/Catalog No. | 1784-KTCX |
| Module Type | Interface Card |
| ControlNet Phase | 1.25 Only |
| Dual-Port BNC | Yes |
| Module Output Connector | 62-Pin D-Shell |
| Baud Rate | Asynchronous (PLC) 9600 and 19.2K, Synchronous (Data Highway) 57.6K |
| Operating Temperature | 32-113 F (0-45 C) |
| Typical Application | 10-32 Volts DC, Digital |
| Weight | 0.3 lbs (0.1 kg) |
| Coating | Conformal Coat |
| Required External Power | None |
| Typical AC Signal Delay (Off) | 29 (+/- 8) ms |
| Typical DC Signal Delay (Off) | 30 (+/- 7) ms |
| Wiring Arm | 1771-WN |
| Dimensions | 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm) |
