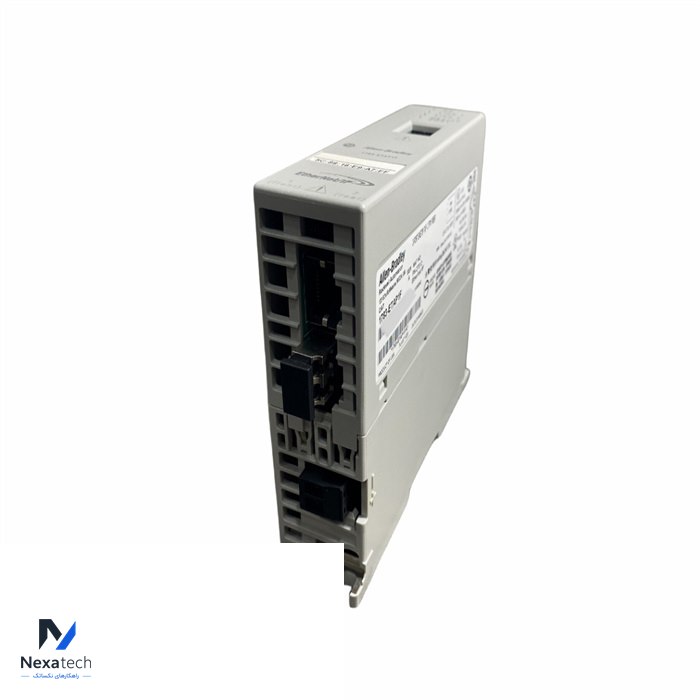

1783-ETAP1F Ethernet Switches

The 1783-ETAP1F is a part of the Stratix 2000 series, specifically designed for industrial applications requiring reliable Ethernet connectivity. This Ethernet switch is particularly suited for use in systems where ring topologies or high availability are needed. Below are the key features and specifications of the 1783-ETAP1F:

Key Features:
Device-Level Ring (DLR) Support: Allows for ring topologies that provide high network availability by offering fast recovery times in case of a single network failure.
Gigabit Fiber Optic Port: The “1F” in the model number indicates the inclusion of a fiber optic port, enabling long-distance communication with high bandwidth.
Compact Design: Designed for easy integration into control panels with space constraints.

DIN Rail Mounting: Facilitates quick and secure installation within industrial enclosures.
Harsh Environment Suitability: Built to withstand industrial conditions, with robust construction and protection against dust and moisture.
Low Power Consumption: Energy-efficient design to reduce overall power requirements.

Specifications:
Number of Ports:
2 Copper Ethernet ports (10/100 Mbps)
1 Fiber Optic Ethernet port (1 Gbps)
Network Topology Support: Device-Level Ring (DLR), Linear, Star
Fiber Optic Port:
Supports single-mode fiber
SC connectors typically used
Power Supply:
Typically powered by 24V DC (range may vary)
Operating Temperature Range:
Typically from -40°C to +70°C, suitable for harsh environments
Environmental Rating:
IP20, suitable for standard industrial environments
Compliance:
CE, cULus, and other relevant industrial certifications
Dimensions:
Compact, often around 90 x 60 x 35 mm (specific dimensions may vary)
