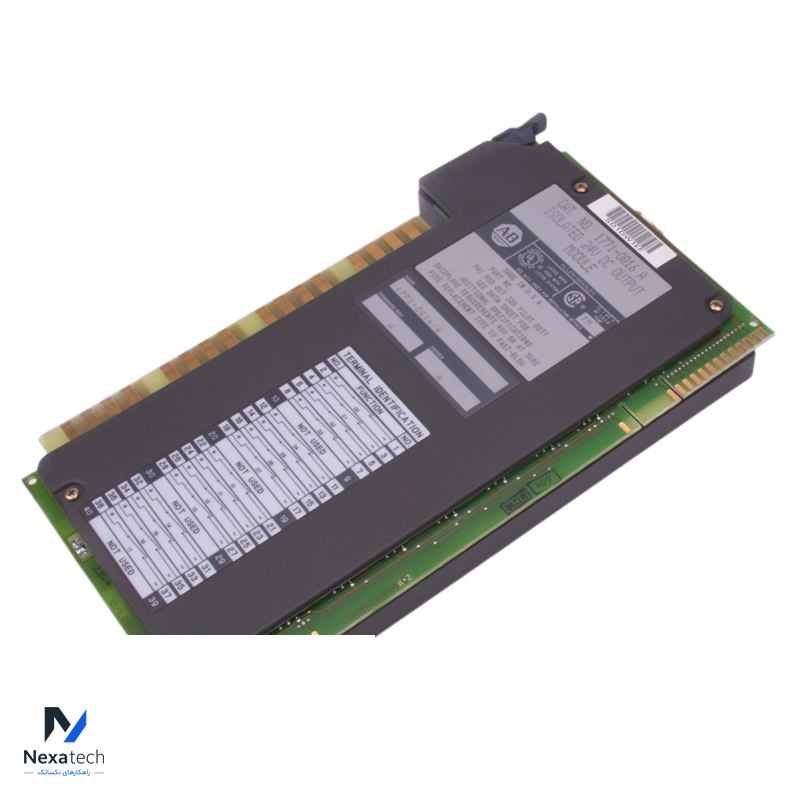

1771-OQ16 Output module

The 1771-OQ16 output module is digital DC output module. It has been designed and manufactured as part of the PLC 5 controller series. The 1771-OQ16 digital DC output module can be used in applications with DC relays and other kinds of DC output devices. This module is an isolated output module with 16 output channels. The 1771-OQ16 digital DC output module draws its operating power from the chassis power supply and it needs 400 milliamps of current at 5 Volts DC from the backplane to operate.

Key Features:
Output Channels:
16 output channels, allowing for the control of multiple output devices from a single module.
Output Type:
Provides dry contact relay outputs, which can be used to switch AC or DC loads.
Voltage and Current Ratings:
Output Voltage: Can handle up to 120V AC or 24V DC loads.
Current Rating: Each output channel can handle up to 2A.
Isolation:
Channels are individually isolated, which helps to prevent electrical noise or faults from affecting the entire module.
Relay Configuration:
Outputs are configured with Form C relay contacts, which include normally open (NO) and normally closed (NC) contacts.
