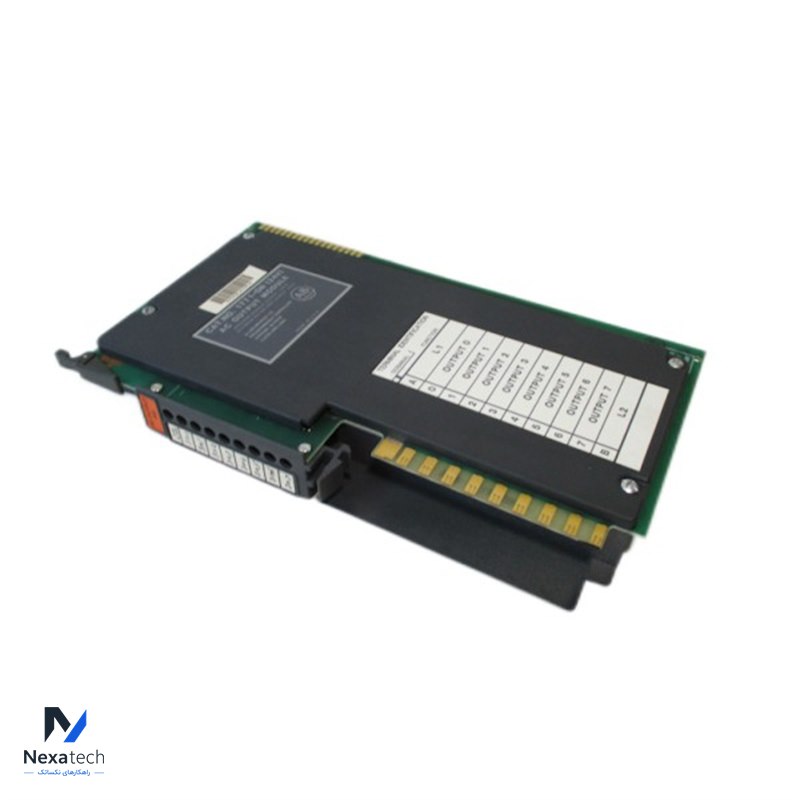

1771-OM Output module
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1771-OM | ||
| Alternate Part Number | 1771-OM | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 15.2 cm | Weight | 0.3kg |
| Description | Output module | Warranty: | 12 Months |
| | | | |
1771-OM output module is an digital AC output module from the PLC 5 controller series. It operates with 225 milliamps of backplane current and with 184 to 225 Volts AC operating voltage. The voltage category rating for the 1771-OM digital AC output module is 220/240 Volts AC. There are 8 total output points in this output module. The 1771-OM digital AC output module can handle 2 Amps of maximum current per output channel and up to 6 Amps of maximum current per module.
| Part Number/Catalog No. | 1771-OM |
| Module Type | Digital AC Output Module |
| Number of Outputs | 8 Outputs |
| Voltage Category | 220 Volts AC |
| AC Operating Voltage | 184-250 Volts |
| Backplane Current | 225 Miliamperes |
| Max Continuous Current Per Output | 2 Amperes |
| Max Current Per Module | 6 Amperes |
| Wiring Arm | 1771-WH |
| Model Status | Earlier Model |
| Coating | Conformal Coat |
| Typical AC Signal Delay (Off) | 45 (+/- 15) ms |
| Typical DC Signal Delay (Off) | 50 ms |
| Mounting | Rack Mountable |
