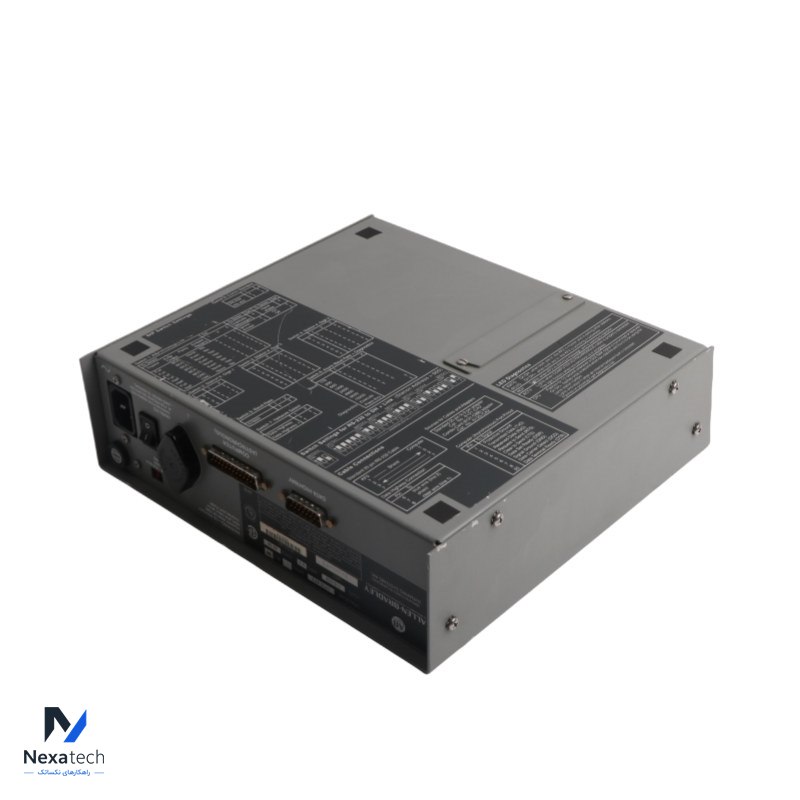

Name: 1770-KF2 Communication Interface Module
Brand: PLC Module
SKU: 1770-KF2
Availability: InStock

مشخصات فنی

Specification
Brand Name	plc module
Model Number	1770-KF2
Alternate Part Number	1770-KF2
Condition	100% Original
Dimensions	26.7x25.3x8.2cm
Description	Communication Interface Module
Weight	1.94KG
Warranty	12 Months

The 1770-KF2 Series B module functions as a communication interface that connects intelligent RS-232-C or RS-422-A asynchronous devices to an Allen-Bradley local area network. By adjusting the module’s switches and cables, you can direct communications through either a Data Highway or a Peer Communication Link (PCL). This module enables a computer on a PCL to communicate with any PLC-5 node on the network. Additionally, other Allen-Bradley products that operate over a PCL include the 1784-T50 Industrial Terminal System and the 1785-KA Communication Adapter Module.

The hardware features of the 1770-KF2 module include:

Diagnostic Indicators: Provides visual feedback for monitoring the module’s status.

Connectors: Designed for both Data Highway and RS-232-C devices.

Communication Option Switches: Allows configuration of communication settings.

Power Components: Includes an On/Off switch, power plug, fuse, and voltage select switch for managing power supply and settings.
