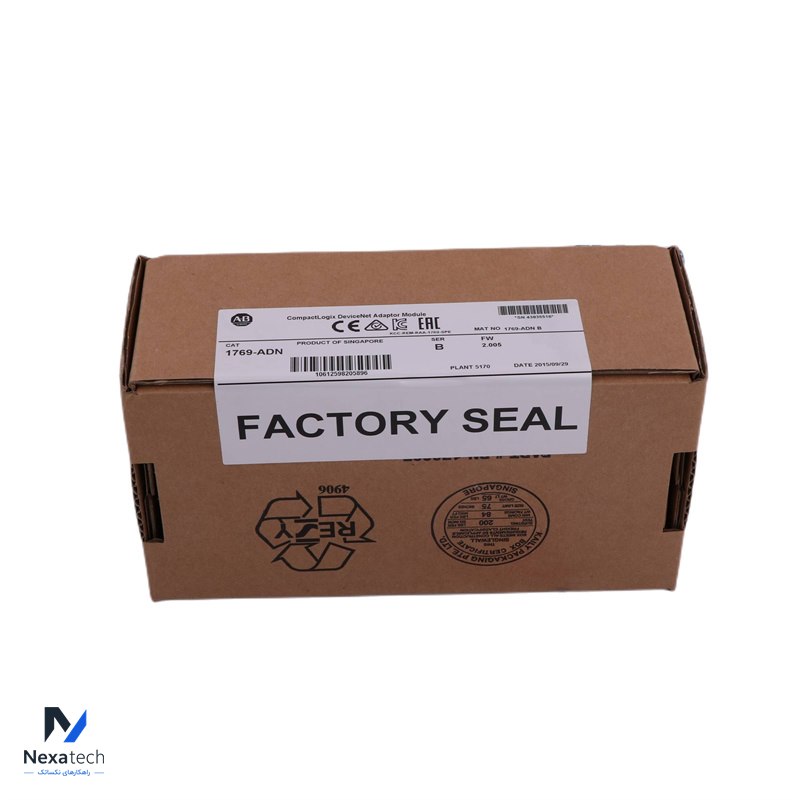

1769-ADN DeviceNet communication module

The  1769-ADN is a DeviceNet communication module compatible It serves as a bridge between a DeviceNet network and a 1769 Compact I/O system
It allows connection to DeviceNet network through the integrated DeviceNet communication port with communication rates of 125k bit/s, 250k bit/s, and 500k bit/s. This module supports DIN rail or panel mounting.

This module has a current draw of 90 mA at 24 Volts DC and voltage of 11 to 25 Volts DC. It has a 30 Volt isolation voltage and a 4.7 Watt Power dissipation. For installation, it uses a DIN rail or panel mounting method with an open enclosure and it requires one slot . The adapter should not be more than 4 modules (Series A) or 5 modules (Series B) away from the power supply. The 1769-ADN adapter module has more diagnostic features providing better fault detection and improved data collection. For wiring, the 802.3 compliant twisted pair cable with 2 millimeters squared (14 AWG) category standard must be used. It has a reduced start-up time and less wiring than a normal hard-wired system.
