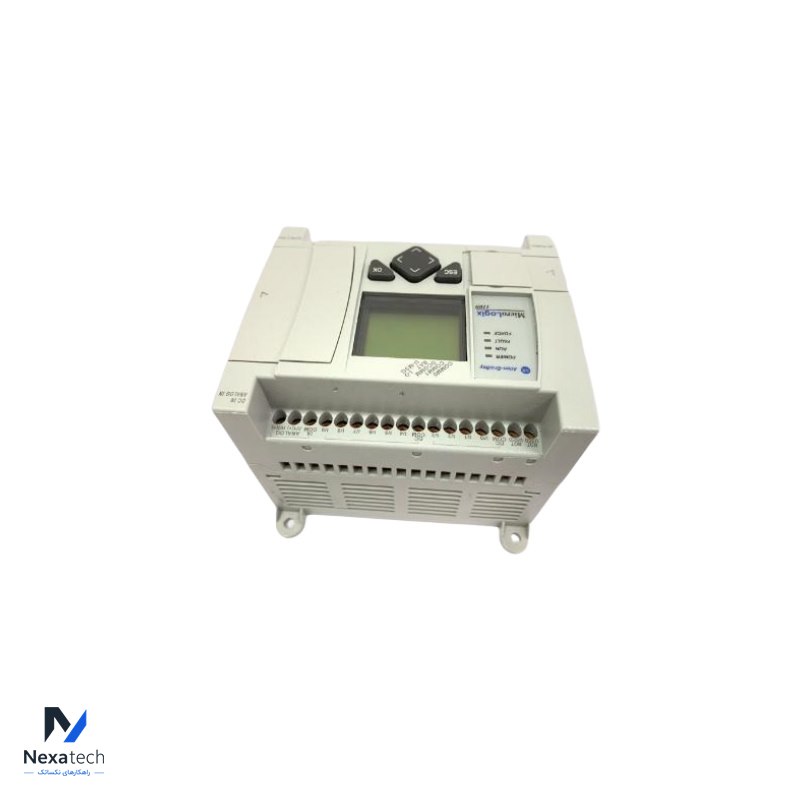

1763-L16BBB Programmable Controller

The 1763-L16BBB is a 1100 Controller. This controller is powered by an external supply voltage of 24VDC with built-in Twelve (12) 24VDC discrete inputs, Two (2) 0-10 VDC analog inputs, Two (2) Relay Outputs, and Four (4) FET Outputs. This controller has a built-in RS232 and Ethernet communication interfaces.

The 1763-L16BBB has an internal power circuitry that requires an external supply voltage of 24VDC. It has a variety of input and output devices such as Ten (10) 24VDC discrete inputs, Two (2) 10VDC analog inputs, Two (2) relay outputs and Four (4) 24VDC FET outputs. The embedded input channels may be operated at 14 - 26.4VDC (+10%) at 65 °C/149 °F or 14 - 30VDC (+25%) at 30 °C/86 °F voltage range. Included in the Ten (10) input channels are Four (4) high-speed input channels, locates at channels 0-3. It accepts input switching frequency of 0 Hz-20 kHz or 0 Hz-40 kHz. Inputs 4 to 10 are standard DC inputs with switching frequency of 0Hz-1kHz.
