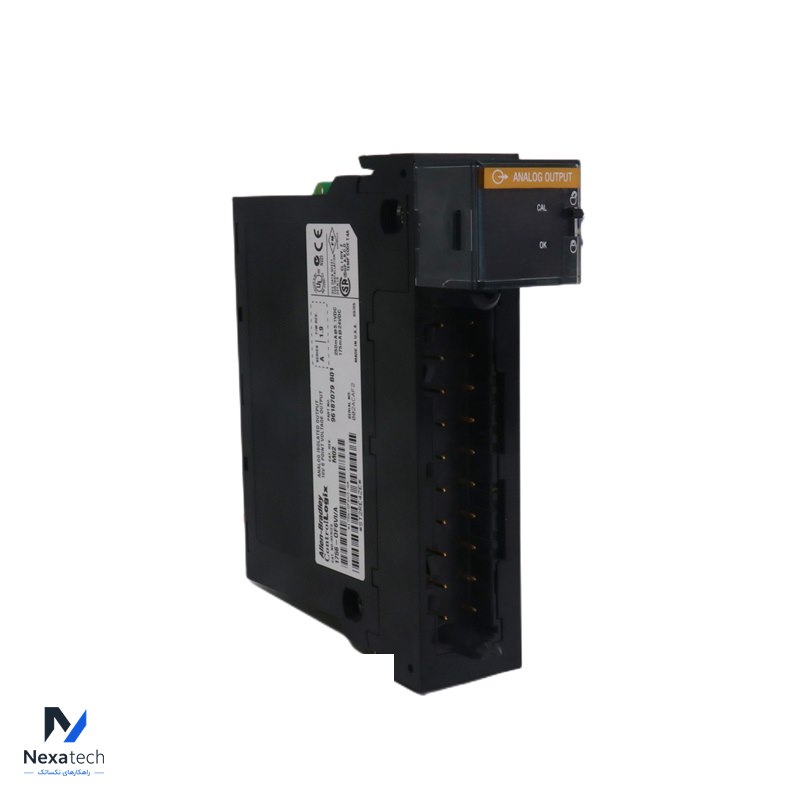

Name: 1756-OF6VI 6 Pt Iso A/O Voltage Module
Brand: PLC Module
SKU: 1756-OF6VI
Availability: InStock

مشخصات فنی

Specification
Brand Name	plc module
Model Number	1746-OB8
Alternate Part Number	1746-OB8
Condition	100% Original
Dimensions	15.2 cm x 15.2 cm x 2.5 cm
Description	6 Pt Iso A/O Voltage Module
Weight	0.3KG
Warranty	12 Months

The 1756-OF6VI module provides six isolated analog output channels that are specifically designed for voltage output signals. It is used in systems for applications requiring isolated analog voltage outputs.

What is the output range of the 1756-OF6VI module?

The module supports voltage outputs in the range of 0-10V. Each output channel can be independently configured within this range.

What is the isolation capability of the 1756-OF6VI?

The module features isolation between channels and between the channels and the system, which helps to prevent signal interference and protect the module from electrical faults.

How are the channels configured?

Channels can be individually configured through the RSLogix 5000 or Studio 5000 software. You can set the output range, scaling, and other parameters for each channel as needed.
