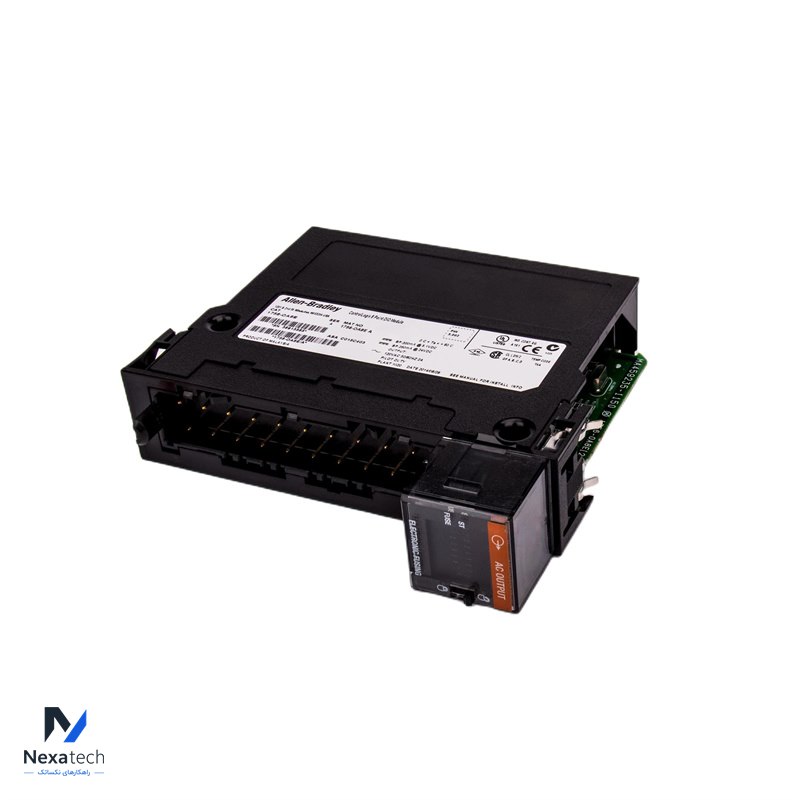

1756-OA8E Discrete output module

The 1756-OA8E is a Discrete output module from the product family. This module is a single slot, discrete output module that features Eight (8) electronically fused, 120 VAC output channels. It has Two (2) groups of Four (4) outputs each with output voltage range of 74-132VAC and output current of 2 A @ 60 degrees C (140 degrees F); 4 A @ 30 degrees C (86 degrees F) / 2 A @ 60 degrees C (140 degrees F) linear derating per group and 8 A @ 30 degrees C (86 degrees F) / 4 A @ 60 degrees C (140 degrees F) per module. It may be installed to any available slot of 1756 chassis.

The 1756-OA8E is a discrete output module. This module comes with Eight (8) output channels that delivers a nominal output voltage of 120 VAC with operating range of 74-132 VAC, 47-63 Hz. This module has Two (2) output groups of Four (4) channels each with output current of 2 A @ 60 degrees C (140 degrees F) and output current per group of 2 A @ 60 degrees C (140 degrees F); 4 A @ 30 degrees C (86 degrees F) / 2 A @ 60 degrees C (140 degrees F) with linear derating and output current per module of 8 A @ 30 degrees C (86 degrees F) / 4 A @ 60 degrees C (140 degrees F) with linear derating. The 1756-OA8E has an output delay time of 9.3 ms @ 60 Hz or 11 ms @ 50 Hz for Off to On and On to Off output transitions. This module may be installed to any available slot of the 1756 chassis with a current draw of 200 mA @ 5.1 VDC and 250 mA @ 24 VDC and total backplane power requirement of 7.02 Watts.
