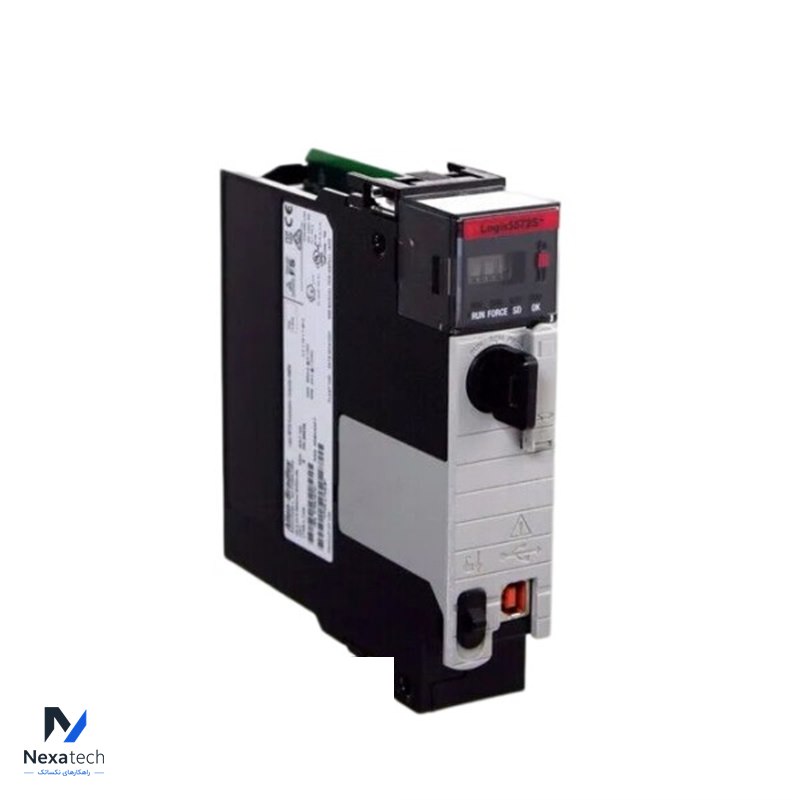

1756-L72S Programmable Automation Controller
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1756-L72S | ||
| Alternate Part Number | 1756-L72S | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 15.2 cm | Weight | 0.3kg |
| Description | Programmable Automation Controller | Warranty: | 12 Months |
| | | | |
The 1756-L72S is part of the 5570 Programmable Automation Controller (PAC). This controller comes with standard and safety features and with embedded memory capacities of 4 Megabytes user memory, 2 Megabytes Safety memory, I/O memory of 0.98 Megabytes and 1 Gigabyte non-volatile memory which is provided by the 1784-SD1 that ships with the controller. It also comes with 1 USB communication port for local configuration of the controller. It is capable of handling up to 128,000 Discrete I/O and 4000 Analog I/O memory. This controller is Safety Integrity Level (SIL) 3 certified.
| User Memory | 4MB |
| Module Type | Processor Module |
| Series | GuardLogix 5570 |
| Part Number/Catalog No. | 1756-L73S |
| Product Type | Programmable Automation Controller |
| Safety Partner controller | 1756-L7SP |
| Safety Memory | 2 MB |
| Non-volatile memory | 1GB (ships with the controller) |
| Maximum I/O | 128000 |
| Maximum Analog I/O | 4000 |
| No. of standard task | 31 |
| No. of safety task | 1 |
| Programs per task | 100 programs |
| Event Tasks | All triggers |
| Built-in communication | 1 USB port |
| Energy Storage Modules | 1756-ESMCAP c (Integrated); 1756-ESMNSE; 1756- ESMNRM |
| I-O Memory | 0.98 MB |
| Maximum I-O | 128000 |
| Maximum Analog I-O | 4000 |
| Maximum Digital I-O | 128000 |
| Current Draw (1.2 Volts DC) | 5 Miliamperes |
| Current Draw (5.1 Volts DC) | 800 Miliamperes |
| Power Dissipation | 2.5 Watts |
| Thermal Dissipation | 8.5 BTU per hour |
| Isolation Voltage | 30 Volts Continuous |
| Enclosure | None (Open-Style) |
