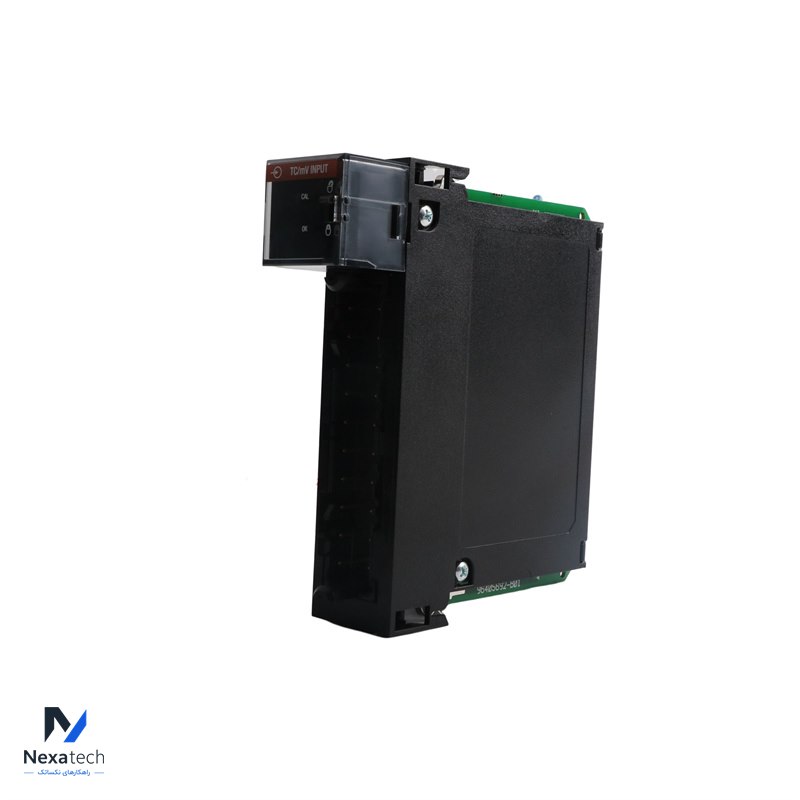

1756-IT6I2 Analog input module
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1756-IT6I2 | ||
| Alternate Part Number | 1756-IT6I2 | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 15.2 cm | Weight | 0.3kg |
| Description | Analog input module | Warranty: | 12 Months |
| | | | |
The 1756-IT6I2 is a analog input module. This is an enhanced Thermocouple input module that has Six (6) individually isolated Thermocouple and millivolt input channels. Compatible Thermocouple types are B, E, J, K, R, S, T, N, C, D, L (TXK/XK) with 16-bit resolution. It comes with a pair of CJC sensors.
Key Features:
Six Individually Isolated Channels:
Each of the six channels is individually isolated, reducing the risk of interference between channels and ensuring accurate measurements.
Thermocouple Compatibility:
Supports various thermocouple types, including B, E, J, K, R, S, T, N, C, D, and L (TXK/XK), making it versatile for a wide range of temperature measurement applications.
Millivolt Input Support:
In addition to thermocouple inputs, the module can measure low-level millivolt signals, broadening its application scope.
16-Bit Resolution:
The module provides 16-bit resolution, enabling precise temperature measurements and capturing small changes in input signals.
| Part Number/Catalog No. | 1756-IT6I2 |
| Inputs | 6 Isolated Thermocouple, 2 CJC |
| Module Type | Analog Thermocouple Module |
| No. of Inputs | Six (6) Point Isolated Thermocouple Inputs |
| Input Resolution | 16 bits -12…78 mV: 1.4 ?V/bit (typical) -12…30 mV: 0.7 ?V/bit (high resolution range)Input Range |
| Module Scan Time | 25 ms min floating point (millivolt) 50 ms min floating point (temperature) 10 ms min integer (millivolt)(1) |
| Backplane Current (24Volts) | 120 milliamps |
| Data Format | Integer mode (left justified, 2s complement) IEEE 32-bit floating point |
| Supported Sensors | B, C, D, E, J, K, L, N, R, S, T |
| Backplane Current (5Volts) | 200 milliamps |
| Removeable Terminal Blocks | 1756-TBNH, 1756-TBSH |
| Backplane Current (24 Volts) | 150 milliamps |
| Backplane Current at 24 Volts | 2 milliamperes |
| Power Dissipation (Max) | 4.6 Watts |
| Removable Terminal Blocks | 1756-TBNH |
