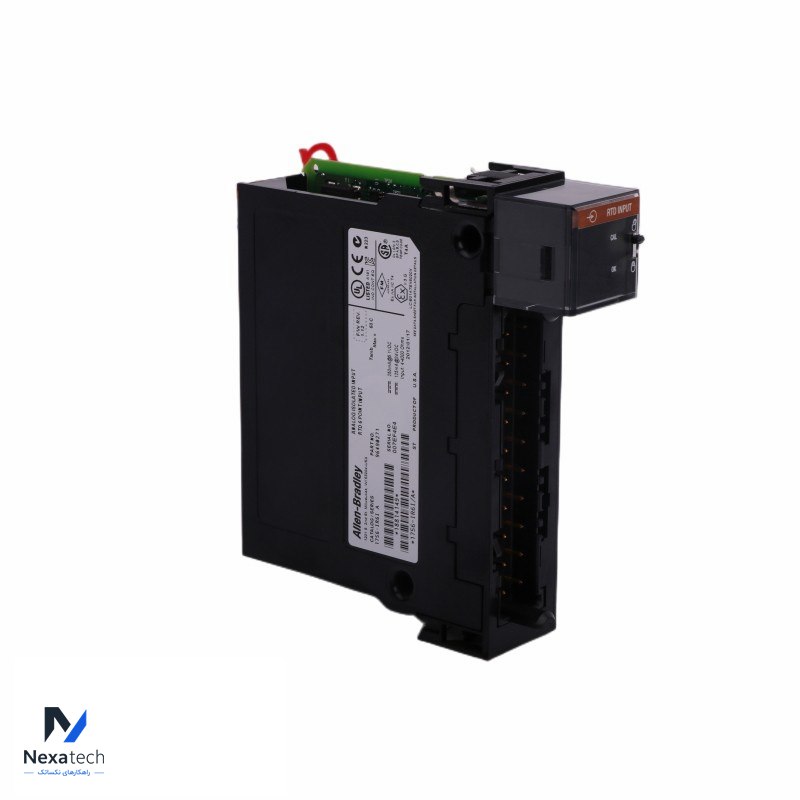

Name: 1756-IR6I 6 Pt Isolated RTD In Module
Brand: PLC Module
SKU: 1756-IR6I
Availability: InStock

مشخصات فنی

Specification
Brand Name	plc module
Model Number	1756-IR6I
Alternate Part Number	1756-IR6I
Condition	100% Original
Dimensions	3.5x14.2x14.5cm
Description	6 Pt Isolated RTD In Module
Weight	0.272KG
Warranty	12 Months

To use the rate alarm for a non-ohm input on the 1756-IR6I module and a non-millivolt input on the 1756-IT6I and 1756-IT6I2 modules, you must have RSLogix 5000® software, version 12 or later, and module firmware revision 1.100 or later.

For the 1756-IR6I module in temperature applications, if a wire-off condition is detected, the behavior depends on the specific wires disconnected:

1.If only the wire connected to terminal A is lost:

The input data for the channel will change to the highest scaled temperature value associated with the selected RTD type.

The ChxOverrrange (where x = channel number) tag will be set to 1.

2.If any other combination of wires is disconnected:

The input data for the channel will change to the lowest scaled temperature value associated with the selected RTD type.

The ChxUnderrange (where x = channel number) tag will be set to 1.
