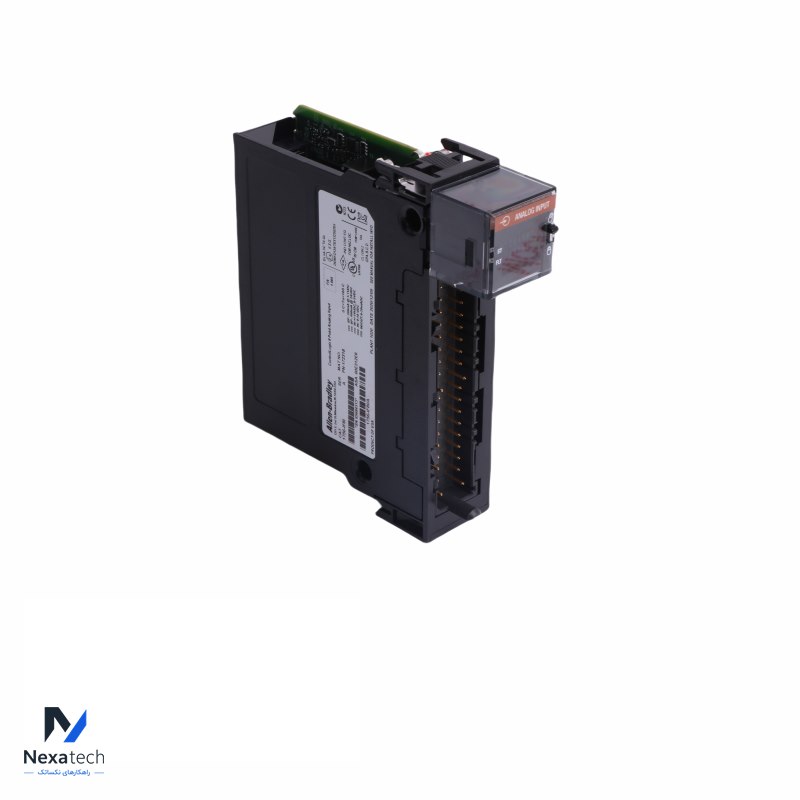

1756-IF8I Analog Isolated Input Module 8-Points 36Pin

For a 1756-IF8I or 1756-IF8IK module operating in current mode with a 0…21 mA range, and a 4…20 mA transmitter in use:

Set High Engineering to 20 EU

For modules with 8 channels, data is mapped from a 6-channel module format to an 8-channel module format. Despite the controller sending data in the 1756-IF6I module format, the firmware internally adjusts this data to match the 1756-IF8I module format.
