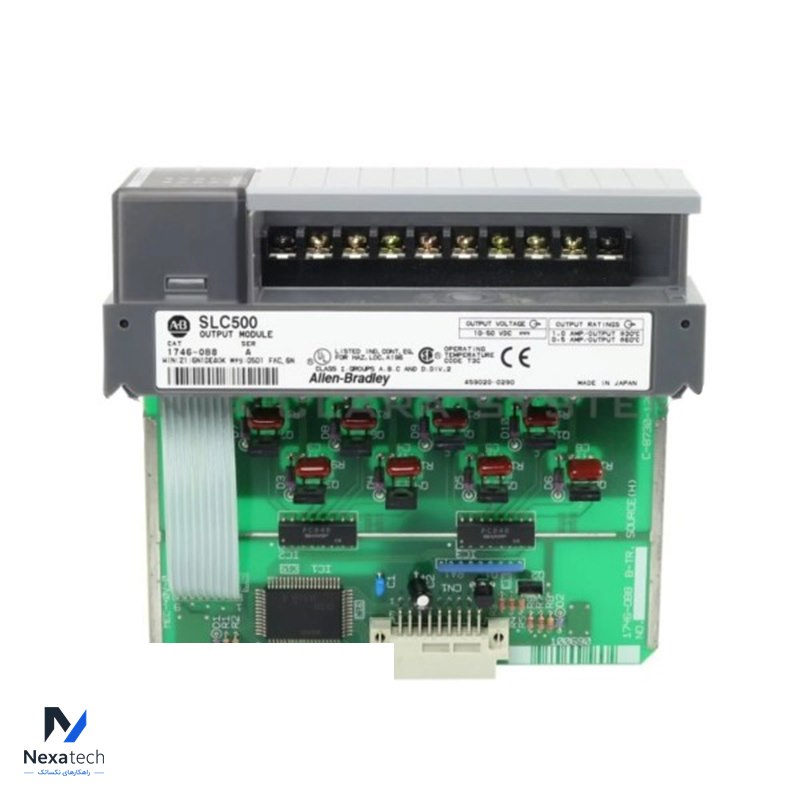

Name: 1746-OB8 SLC 500 24V DC Source Output
Brand: PLC Module
SKU: 1746-OB8
Availability: InStock

مشخصات فنی

Specification
Brand Name	plc module
Model Number	1746-OB8
Alternate Part Number	1746-OB8
Condition	100% Original
Dimensions	9.3x4.8x5.3cm
Description	24V DC Source Output
Weight	0.08KG
Warranty	12 Months

Fast turn-off modules (including models 1746-OB6EI, 1746-OBP8 Series B and later, 1746-OB16E Series B and later, 1746-OBP16, and 1746-OVP16) are designed to provide a rapid OFF delay for inductive loads. When switching a Bulletin 100-B110 (24W sealed) contactor, the OFF delay times are as follows:

1746-OB8/1746-OV8: 152 ms

Fast turn-off modules: 47 ms

1.1746-OB8 SLC 500 24V DC Source Output module provides eight 24V DC sourcing output channels for controlling external devices.

2. What is a sourcing output?

A sourcing output means that the module provides a positive voltage to the load. In this configuration, the output module supplies the positive voltage (24V DC) and the load is connected to the ground.

3. What is the maximum current rating for each output channel on the 1746-OB8?

Each output channel on the 1746-OB8 can handle a maximum current of 0.5A (500 mA), and the total current rating for all eight outputs combined is also limited by the module’s specifications.
