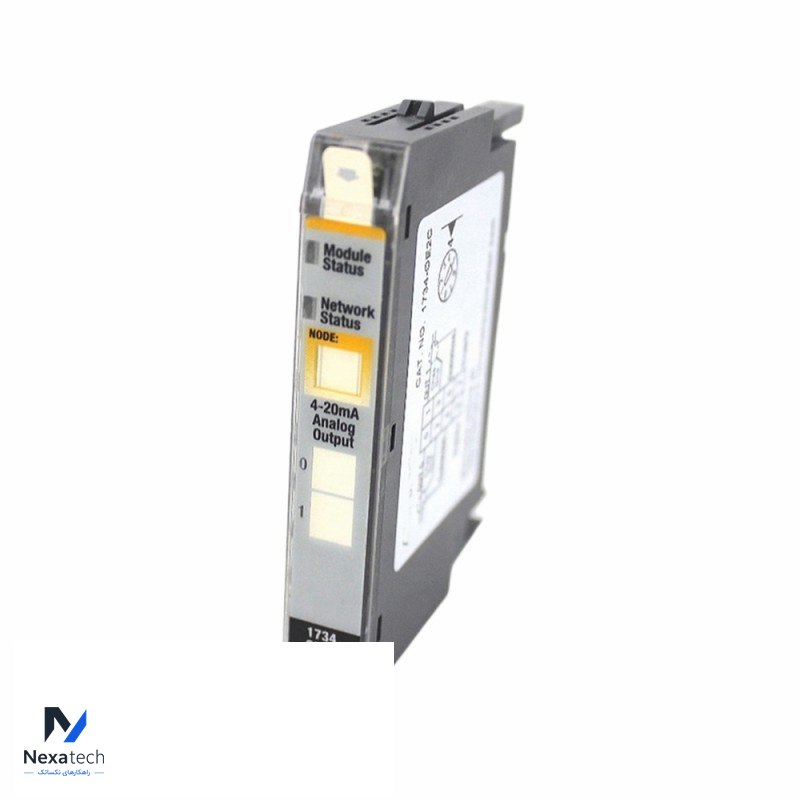

1734-OE2CK POINT I/O 2 Point Analog Output Module-K

Question

Answer

How many outputs does the module have?

The 1734-OE2CK has 2 analog output channels.

What types of outputs are supported?

It supports both current (4-20 mA) and voltage (0-10V DC) outputs.

What is the resolution of the outputs?

The module provides a 16-bit resolution for both current and voltage outputs.

What are the communication options?

It communicates over the EtherNet/IP network using the POINTBus backplane.

Is the module hot-swappable?

Yes, the 1734-OE2CK is hot-swappable, allowing for replacement without shutting down the system.

What is the operating temperature range?

The operating temperature range is -20 to 55°C (-4 to 131°F).

What kind of isolation does it have?

It provides channel-to-system isolation to prevent electrical interference between components.

What is the power consumption of the module?

The module consumes 75 mA of current from the POINTBus backplane.

Is external power required for the module?

No, the module is powered through the POINTBus backplane and doesn’t require an additional external power supply.

How is the module mounted?

The module can be DIN rail mounted as part of the POINT I/O system.

What certifications does it carry?

The 1734-OE2CK is certified for use in hazardous locations and complies with CE, UL, and ATEX standards.

Does it support diagnostics?

Yes, it has built-in diagnostics for monitoring module status and troubleshooting output conditions.

Can the module be used in safety applications?

No, the 1734-OE2CK is not rated for safety or SIL (Safety Integrity Level) applications.

What software is required for configuration?

The module is configured using Studio 5000 Logix Designer software.
