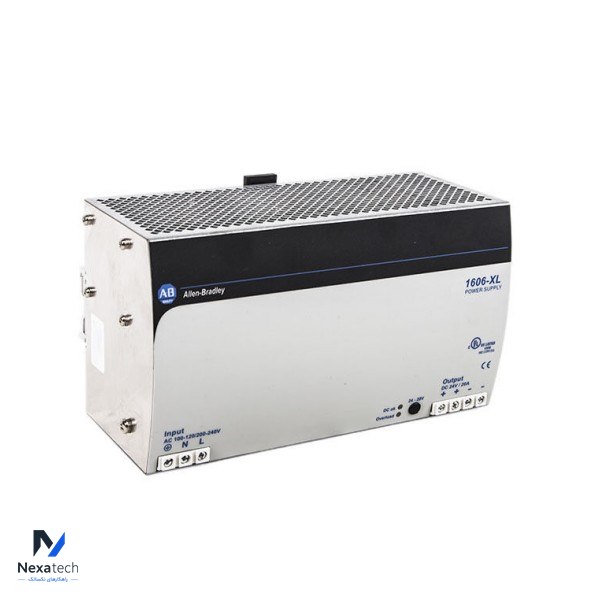

1606-XL480EP standard power supply module

The  1606-XL480EP module is a standard power supply module that is manufactured as part of the Bulletin 1606-XL Standard Switched Mode Power Supply series

The 1606-XL480EP standard power supply module has been manufactured as part of the Bulletin 1606-XL Standard Switched Mode Power Supply series. This power supply module operates on an input voltage of 100 to 240 Volts AC or 24 to 28 Volts DC, an input power rating of 480 Watts, and a current rating of 20 Amps. It comes with an input frequency of 50 to 60 Hertz, a minimum frequency rating of 47 Hertz, and a maximum frequency rating of 63 Hertz. It has a nominal inrush current of 5 Amps and a maximum inrush current of 18 Amps. Other notable specifications of the 1606-XL480EP power supply module include LED indicator lights, a minimum hold-up time of 30 milliseconds, an output current of 20 Amps at 24 Volts DC, and 18 Amps at 28 Volts DC. It also has 519,000 hours of minimum time before failure (MTBF). It supports the NEMA IP 20 rating and DIN-35 rail mount mounting type and a minimum electrical efficiency of 90.5%

Key Features:
High Efficiency:
The power supply boasts a high efficiency of up to 95.6%, reducing energy losses and minimizing heat generation, which is crucial for maintaining system reliability.
Compact Design:
The 1606-XL480EP is designed with a compact form factor, making it ideal for installations where space is limited.
Wide Input Voltage Range:
It supports a wide AC input voltage range of 85 to 264V AC, making it suitable for global use and capable of handling voltage fluctuations commonly found in industrial settings.
Output Voltage and Current:
Provides a nominal DC output voltage of 24V and an output current of 20A, delivering up to 480W of power.
