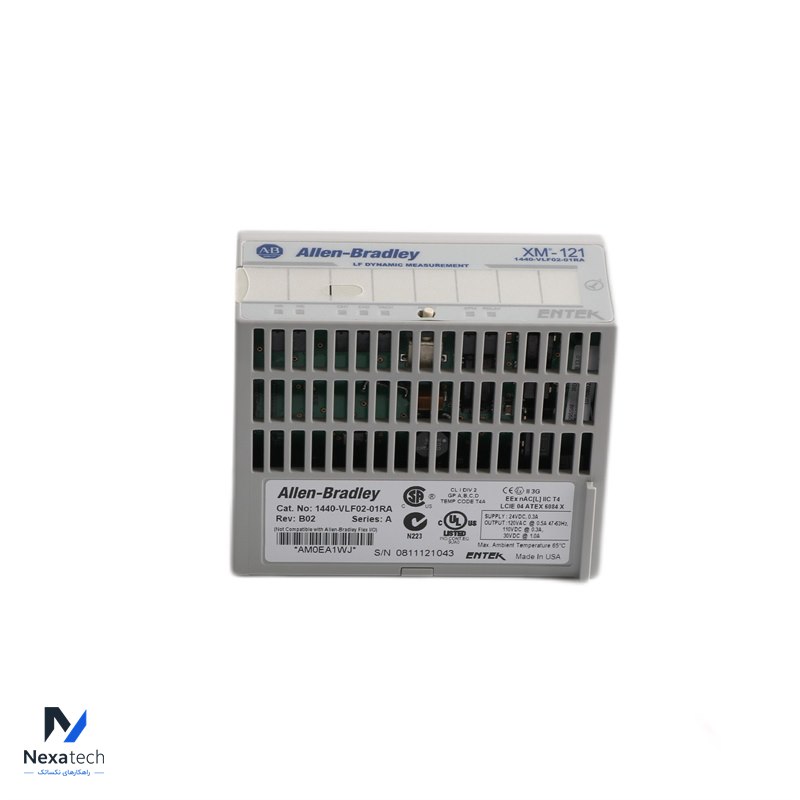

1440-VLF02-01RA Monitoring module

The 1440-VLF02-01RA module is a monitoring module by which is used to monitor the current status and predict the future status of industrial machinery. This module comes with a voltage rating of 24 Volts DC and a current rating of 300 mA.

This module is designed to be mounted on an XM 940 terminal base unit. It is recommended to mount the 1440-VLF02-01RA monitoring module once the wiring has been connected to the terminal base. This module is only compatible with the XM 940 terminal base unit. During installation, it is important to check whether the keyswitch on the base unit is in position 1. Never try to install the 1440-VLF02-01RA monitoring module on a different terminal base, and never change the position of the keyswitch once the wiring of the XM 940 terminal base unit is complete. Upon starting up the 1440-VLF02-01RA monitoring module, it performs a self-test. This self-test comprises a status indicator test as well as a device test. Through the status indicator test, the different indicators turn on individually and sequentially for an average of 0.25 seconds.
