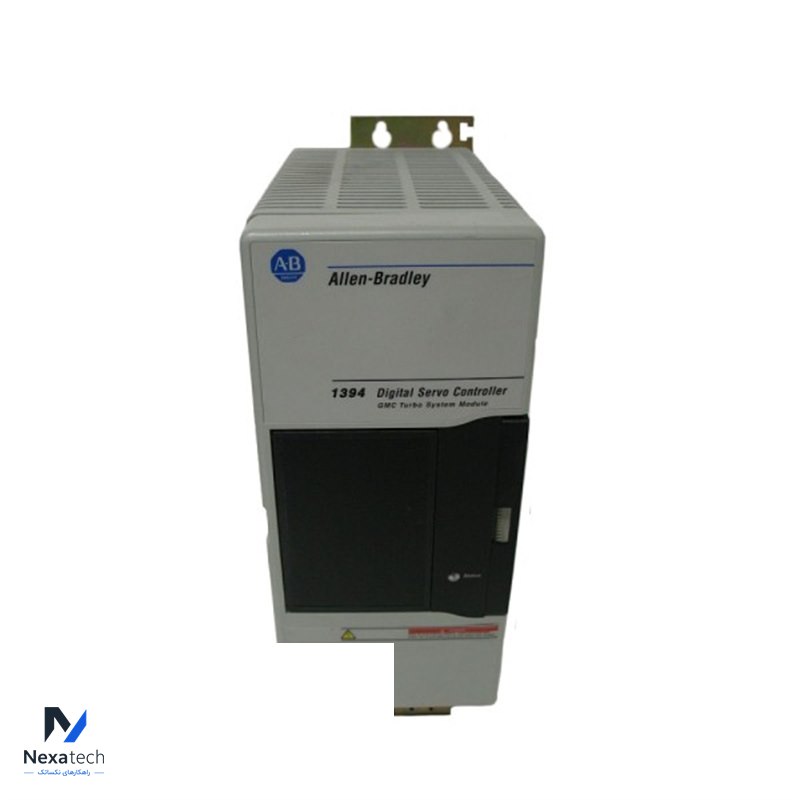

1394C-SJT10-T-RL GMC TURBO SYSTEM MODULE
توضیحات محصول
مشخصات فنی
| Brand Name: | PLC MODULE | ||
| Model Number: | 1394C-SJT10-T-RL | ||
| Alternate Part Number | 1394C-SJT10-T-RL | ||
| Condition: | 100% Original | ||
| Dimensions | 20.3 cm x 2.5 cm x 17.8 cm | Weight | 0.4kg |
| Description | GMC TURBO SYSTEM MODULE | Warranty: | 12 Months |
| | | | |
The 1394C-SJT10-T-RL GMC Turbo System Module 1394 Series, which is used in high-performance motion control systems. The GMC Turbo System Module typically plays a role in advanced motion control applications, particularly in systems requiring high-speed and precise control of motors.
Key Features:
High-Performance Motion Control: Designed for precise and rapid control of motion in complex automation systems.
Integration with 1394 Drives: Works seamlessly with the 1394 drive system, which is known for its advanced motion control capabilities.
Advanced Features: Includes features tailored for high-speed applications, including feedback and control mechanisms for accurate motion management.
Modular Design: The module is designed to be integrated into a modular control system, allowing for flexibility and scalability in automation setups.
Technical Specifications:
Part Number: 1394C-SJT10-T-RL
Model: GMC Turbo System Module
Function: Motion control for high-speed and precise applications.
Compatibility: Works with 1394 drive systems and other compatible components.
Power Requirements: Operates within the power specifications suitable for the 1394 drive systems.
Environmental Ratings: Built to operate reliably under industrial conditions, with protection against electrical noise, temperature variations, and mechanical stress
| Part Number/Catalog No. | 1394C-SJT10-T-RL |
| Product Line | Servo Controller |
| Module Type | System |
| Power Rating | 10 Kilowatt |
| Input Phase | 3 Phase |
| Series Enhancements | Terminations, Filtering (EMI), and Smart Power |
| Factory-Installed Options | GMC Turbo- IMC S Class |
| GMC Options | AxisLink and Remote I/O |
| Input Voltage | 360-480AC Volts |
| Nominal Bus Output Voltage 380/460 Volts | 530/680 Volts DC |
| Continuous Power Output 380/460 Volts | 8/10 Kilowatts |
| Peak Power Output | 28 Kilowatts |
| Efficiency | 99% |
| Continuous Current Output | 14.73 Amperes |
| Peak Current Output | 29.46 Amperes |
| Line Loss Ride Through | 20 ms |
| Rated AC Input Voltage | 324-528 Volts AC, 50-60 Hertz, 3 Phase |
| AC Input Current | 13.0 Amperes |
| Weight | 23.5 lbs (10.68 kg) |
| Dimensions | 13.8 x 11.0 x 5.91 in (350 x 280 x 150 mm) |
