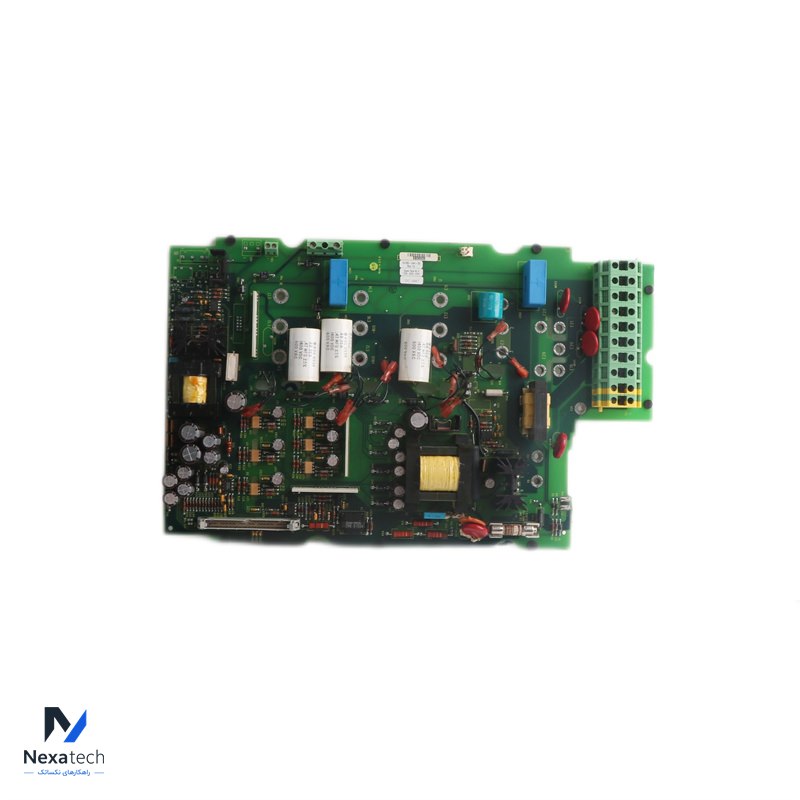

1336-BDB-SP5C Gate Drive PCB

The 1336-BDB-SP5C is a Gate Drive PCB (Printed Circuit Board) used in the 1336 PLUS and 1336 FORCE AC drives series. Here are its key features and specifications:

Model: 1336-BDB-SP5C
Function:

Role: The Gate Drive PCB is responsible for controlling the gate firing of the power transistors within the AC drive. It manages the power conversion process by switching the transistors on and off to regulate the output voltage and current.
Specifications:

Compatibility: Designed for use with 1336 PLUS and 1336 FORCE drives
Connections: Typically interfaces with the drive’s main control board and power sections
Power Rating: Dependent on the specific drive model it is used with, generally matching the drive's overall power rating and specifications
